The Cross-Air taps into an existing port at the front and rear of the cylinder head that are normally sealed off with a freeze plug style fittings from the factory. By splitting off the driver-side charge tube and creating two additional parallel paths to those ports, cylinders 1, 5, and 6 receive significantly better air supply, greatly helping balance the engine temperatures and load at each cylinder.
This entire package is fully TIG-welded, utilizing mandrel bent tubing, a laser cut 1/2" flange, and 1/4" dipstick mount. The intake manifold is standard equipped with four 1/8 inch NPT ports on the back for methanol/water injection, a boost gauge, etc.

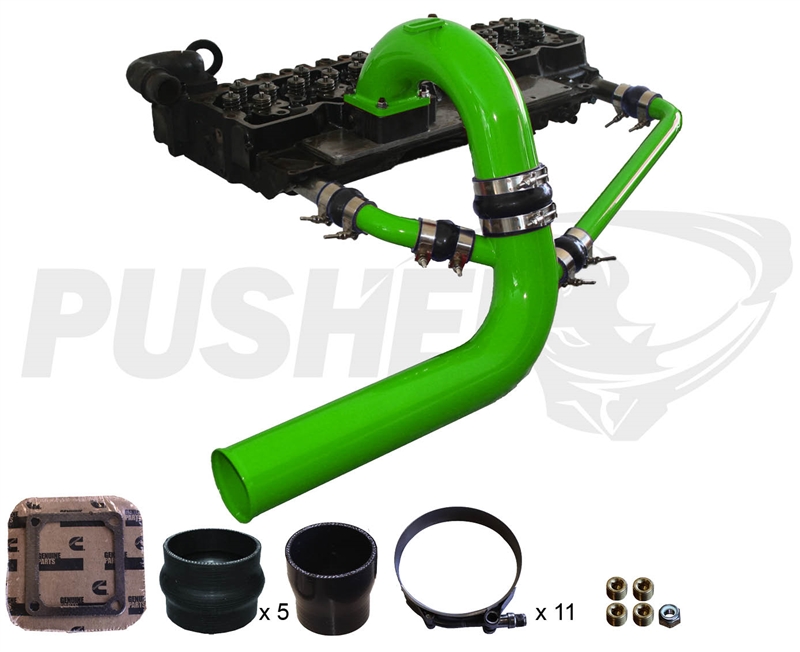

This is a complete kit that includes instructions, machined cylinder head adapters, heavy duty 4-ply silicone couplers, stainless T-bolt clamps, an OEM gasket and hardware, plus 1/8 inch port plugs for a quality install.
This kit must be powder coated or painted prior to install. For an additional charge, select powder coating colors are available.
APPS Compatibility: This kit is not compatible with the APPS mounted in the stock location on 2003-2005 trucks. You must relocate or purchase the Pusher APPS relocation bracket to use the Cross-Air on trucks equipped with a APPS.
Intercooler Compatibility: This product was designed to work with the factory intercoolers, and aftermarket intercoolers that mimic the factory inlet / outlet locations. If you have an aftermarket intercooler please call for the current compatibility list.
